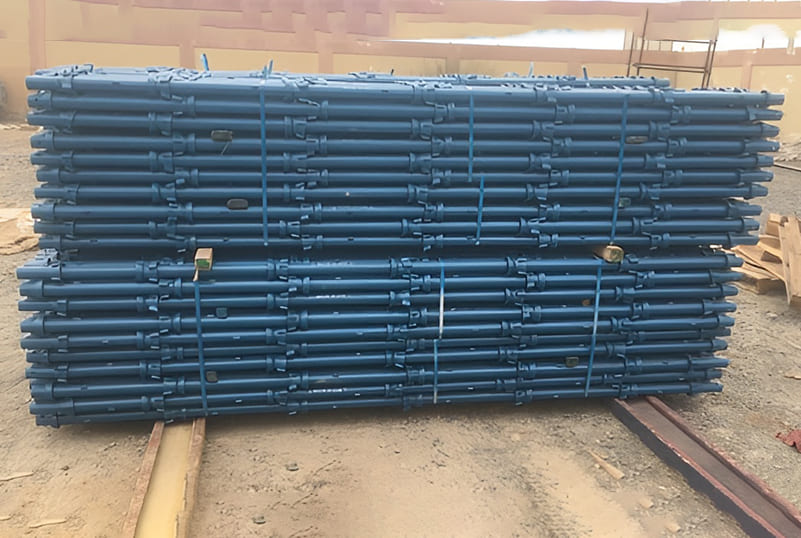

Cuplock Standard

All Cuplock Standards (verticals) incorporate lower fixed cups at 0.5m intervals with captive rotating top cups which secure up to four components. Access standards incorporate a 150mm Spigot at the top to allow the vertical connection of further standards. Provision for a locking pin or bolt is also provided.

Specification: Cuplock Standard 48.3 mm x 3.20 mm BS/EN ARAMCO STANDARD

Size available :

• Cuplock Standard 3.0 MTR
• Cuplock Standard 2.5 MTR
• Cuplock Standard 2.0 MTR
• Cuplock Standard 1.5 MTR
• Cuplock Standard 1.0 MTR

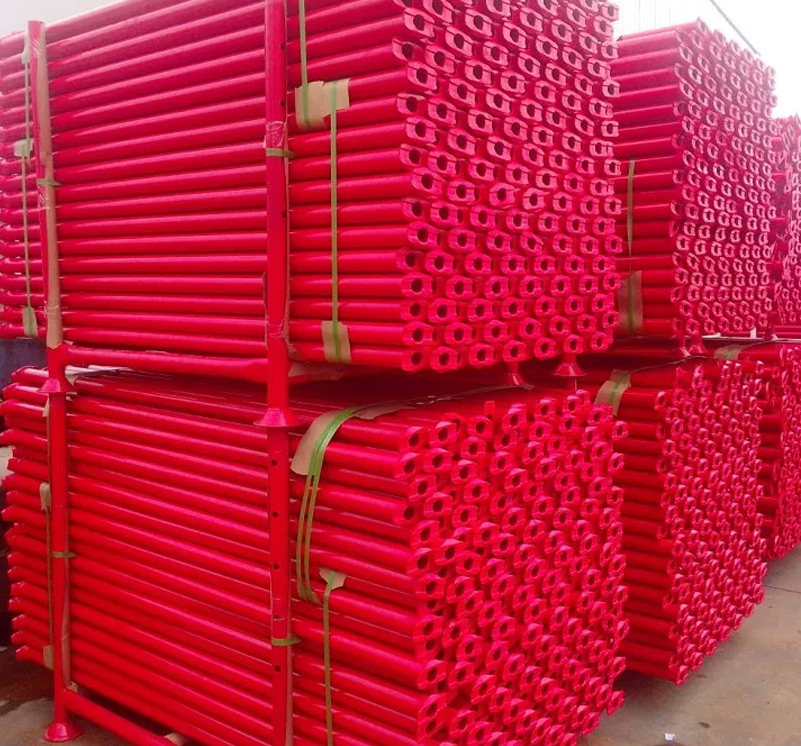

Cuplock Ledger

All Cuplock Ledgers (horizontals) incorporate symmetrical forged blade ends making assembly quick and simple, and allows components to be completely interchangeable. Horizontals locate in the bottom cups of the standards and are secured by locking the top cup.

2.5m horizontals provide the basic bay length in an access structure. This is a suitable bay size for all common access loading conditions.

1.8m horizontals provide a make-up bay size for added flexibility. Normal horizontals also act as guardrails.

Specification: Cuplock Ledger 48.3 mm x 3.20 mm BS/EN ARAMCO STANDARD

Size available :

• Cuplock Standard 2.5 MTR
• Cuplock Standard 1.8 5MR
• Cuplock Standard 1.6 MTR
• Cuplock Standard 1.3 MTR
• Cuplock Standard 0.9 MTR
• Cuplock Standard 0.6 MTR

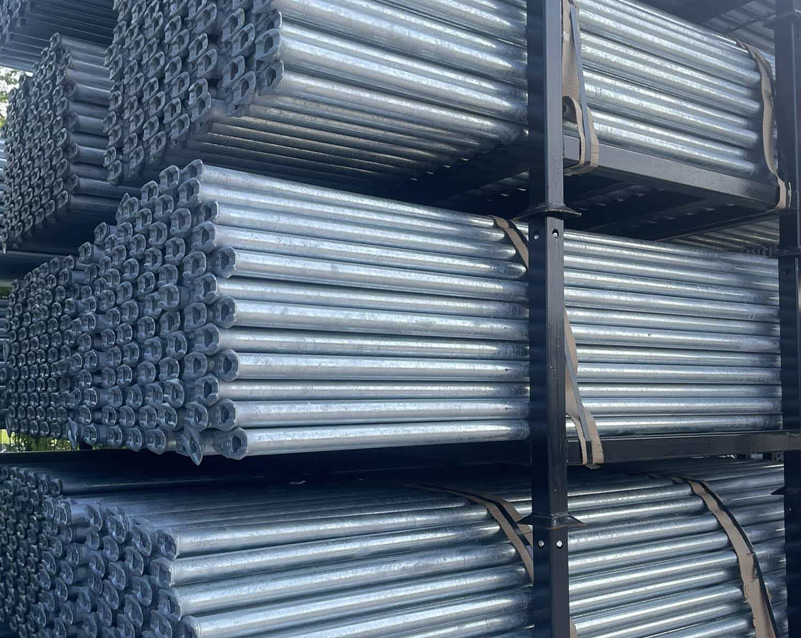

Intermediate Transom

These units are designed to provide intermediate support for standard scaffold boards by spanning between the inner and outer ledgers. The jaw section at each end is turned downwards to prevent dislocation. One end is provided with an integral locking device to prevent movement along with the ledgers during use.

Specification: Intermediate Transom 48.3 mm x 3.20 mm BS/EN ARAMCO STANDARD

Size available :

• Intermediate Transom 2.5 mtr-BS1139
• Intermediate transom 1.8 mtr-BS1139
• Intermediate Transom 1.6 mtr-BS1139
• Intermediate Transom 1.3 mtr-BS1139
• Intermediate Transom 1.0 mtr-BS1139
• Intermediate Transom 0.90 mtr-BS1139
• Intermediate Transom 0.60 mtr-BS1139

Cuplock Spigot Pin Adaptors

300mm Spigot pins are incorporated at the top of the standards/verticals to allow the vertical connection of further standards/verticals. Provision for a locking pin or bolt is also provided. The Spigots are also available with washers to further secure the connection.

Specification: Square Type Spigot Pin 300mm

Painted With 2 Galvanized Nuts & Bolt

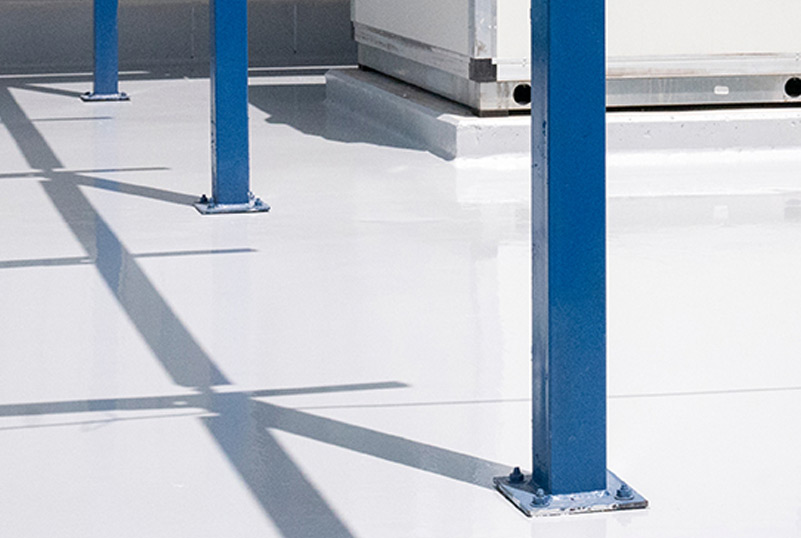

Base Plate

Supplied to EN74/BS1139 Standard our 5mm Scaffolding base plate are for use at the base of the scaffold structure to ensure secure and safe placement of tube. Can be used with a range of sole pads, Timber or Plastic foot plate including our HD Plastic foot plate.

Zinc Plated for long life

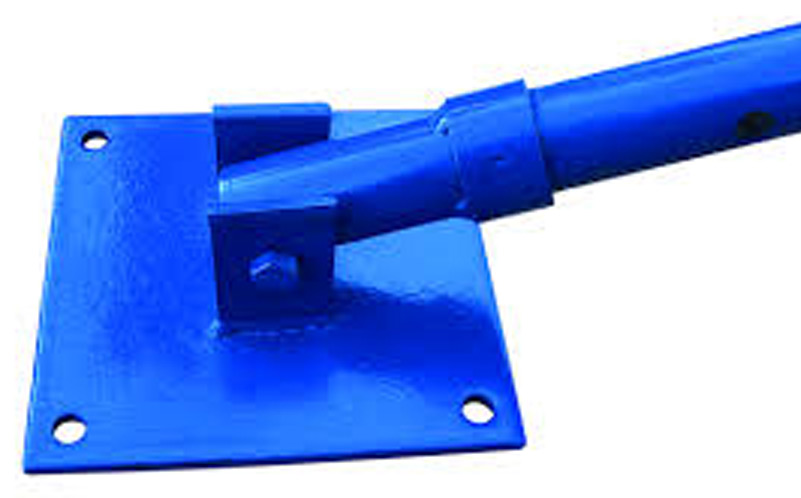

Swivel Base Plate

Swivel Base Plate attaches to the bottom of a Scaffold Frame Leg. prevents the Scaffold Frame Leg from flaring-out. it helps to distribute the weight from the Scaffold & material. Made from high-strength steel. Nail holes in each corner, to nail Base Plate to a Mud Sill.

• Description: 5" X 5" Swivel Base Plate
• Base Plate: 5" x 5"
• Perfect for pitched roofs and sloped surfaces!
• Fits all 1.625" & 1.69" Scaffold Frames (this fits all of our Scaffold Frames!).
• Swivel Base Plate attaches to the bottom of a Scaffold Frame Leg.
• Made from high-strength steel.
